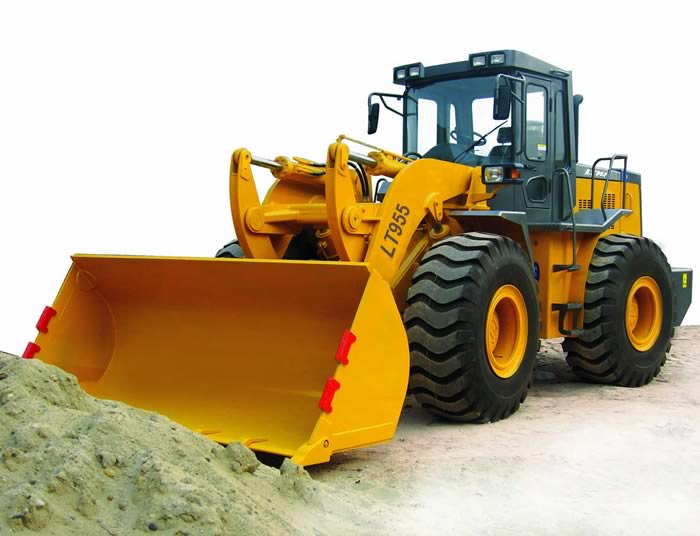

LT955 wheel loader |
|
Operating weight |
16.1±0.5T |
|
Rated load |
5T |
|
Bucket capacity |
3m³ |
|
Engine model |
WD10G220E21 |
|
Rated engine power |
162KW |
|
Rated rotate speed |
220r/min |
|
Max.torque |
745.3N.m |
|
Breakout force |
145KN |
|
Driving speed |
|
|
Forward Ⅰ |
0-11.5km/h |
|
Forward Ⅱ |
0-38km/h |
|
Reverse Ⅰ |
0-16km/h |
|
Gradeability |
28° |
|
Overall length |
7310mm±20mm |
|
Overall width |
2870mm±20mm |
|
Overall height |
3220mm±20mm |
|
Buchet width |
2990mm±10mm |
|
Wheel base |
2760mm±15mm |
|
Track base |
2260mm±10mm |
|
Min.ground clearance |
450mm |
|
Max.dumping height |
2990mm±30mm |
|
Max.dumping reach |
1290mm±20mm |
|
Torque converter |
Single stage,4elements |
|
NO.of shifts |
1 Forwards 2/Reverse 1 |
|
Transmission |
Planet-type |
|
Raise time |
≤6.8s |
|
Total |
≤12.5s |
|
Tyre type |
23.5-25 |
|
