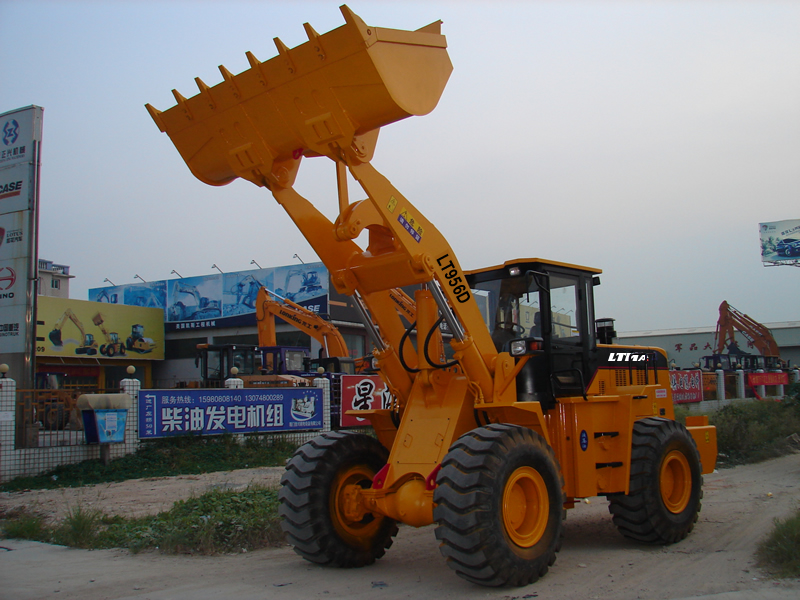

LT956D Wheel loader |
|
Engine |
WD10G220E11 |
|
Rated power |
162kw/2200rpm |
|
Dimensions |
|
|
Overall length |
7657mm |
|
Overall width |
2990 |
|
Overall height |
3410mm |
|
Width over tires |
2840 |
|
Max Dumping height |
3100mm |
|
Distance acc.to the height |
1210mm |
|
Wheel base |
2900mm |
|
Tires type |
23.5-25-16PR |
|
Operating specification |
|
|
Operation weight |
16500kg |
|
Bucket capacity |
3 m3 |
|
Rated load |
5000kg |
|
Rim pull force |
150KN |
|
Steering angle |
35° |
|
Min turning radius |
7050mm |
|
Max breakout force |
170KN |
|
Transmission |
planetary type |
|
No of shifts(forward/reverse) |
forward2/back1 |
|
Fuel tank |
230L |
|
Hydraulic tank |
280L |
|
Time of raise |
5.5S |
|
Hydraulic cycle time |
11.2S |
|
Vehicle speed |
|
|
Forward1 |
11.5km/h |
|
Forward2 |
36km/h |
|
Reverse |
16km/ |
|
